VaporPropane Torches

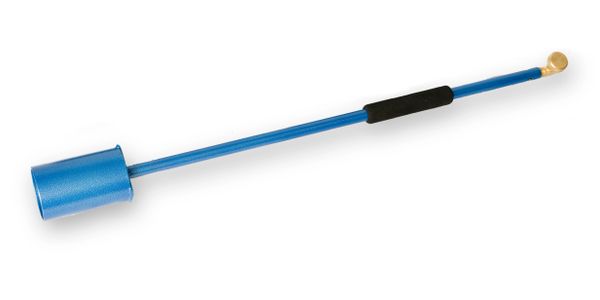

FV-1 Torch

• BTU Rating - 14,000 @ 25 psi
• Fuel - Vapor L.P. Gas (propane)
• Fuel Connection - 9/16"-18 LH (Ball Seat)
• Torch Head Diameter - 1-1/4"
• Material - Mild Steel & Brass
• Length - 15"
• Weight - 1-1/2 lbs.
• Color - Blue & Black

The FV-1 detail torch is great for a wide variety of jobs. Originally used for detailing roof flashing,

the FV-1 Torch has found many other uses, such as sweating plumbing fittings and thawing frozen

lines. It has even been used to glaze hams. The FV-1 is small enough for hard to reach places, but

hot enough to solder.

RECOMMENDED SYSTEM - Burners, Inc. offers the FV-1-K (FV-1 torch, 10 ft. of hose, adjustable

pressure regulator, striker and operating insturctions) for a complete torch system.

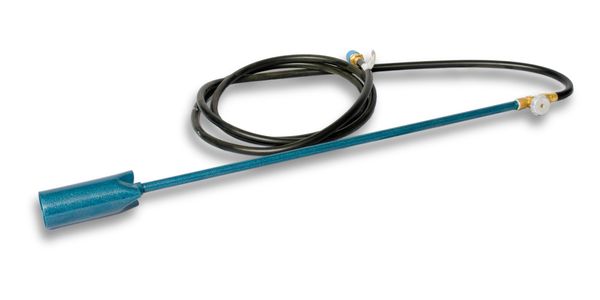

FV-12 Torch

• BTU Rating - 600,000 @ tank pressure
• Fuel - Vapor L.P. Gas (propane)
• Fuel Connection - 9/16"-18 LH (Ball Seat)
• Torch Head Diameter - 2-7/8"
• Material - 1/2" Mild Steel
• Length - 41"
• Height - 9"
• Weight - 10 lbs.
• Color - Blue

The FV-12 utility torch is a great economical source of portable heat. For a wide variety of spot

heating applications such as; boiling water and cooking food. Our exclusive valve-orifice assembly allows this torch to operate safely at tank pressure, eliminating the need for a pressure regulator and keeps your hands away from the heat source.

NOTE - It is recommended that this torch be used in a kit form FV-12-K.

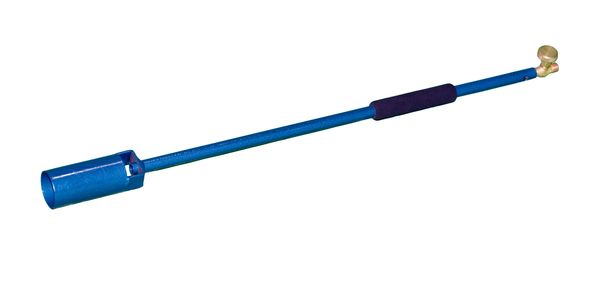

FV-15 Torch

• BTU Rating - 520,000 @ 50 psi
• Fuel - Vapor L.P. Gas (propane)
• Fuel Connection - 9/16"-18 LH (Ball Seat)
• Torch Head Diameter -2"
• Material - Mild Steel & Brass
• Length - 32"
• Weight - 2-1/2 lbs.
• Color - Blue & Black

Primarily designed for the roofing & paving industries, the FV-15 hand torch is builty tough and easy to use. With an adjustable standing pilot flame, the FV-15 torch is always ready to go. Just squeeze the trigger and a full force flame is released towards your work area. The FV-15 has many other applications also, such as; shrink wrapping, industrial processing and

floor & road drying.

RECOMMENDED SYSTEM - Burners, Inc. offers the FV-15-K for a complete torch system

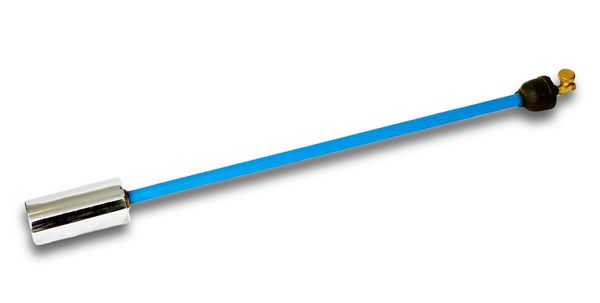

FV-16 Torch

• BTU Rating - 420,000 @ 50 psi
• Fuel - Liquid L.P. Gas (propane)
• Fuel Connection - 9/16"-18 LH (Ball Seat)
• Torch Head Diameter - 2"
• Material - Mild Steel & Brass
• Length - 24"
• Weight - 2 .3 lbs.
• Color - Blue & Black

Primarily designed for the roofing & paving industries, the FV-15 hand torch is builty tough and easy to use. With an adjustable standing pilot flame, the FV-15 torch is always ready to go. Just squeeze the trigger and a full force flame is released towards your work area. The FV-15 has many other applications also, such as; shrink wrapping, industrial processing and

floor & road drying.

RECOMMENDED SYSTEM - Burners, Inc. offers the FV-15-K for a complete torch system.

FV-17 Torch

• BTU Rating - 800,000 @ 50 psi
• Fuel - Liquid L.P. Gas (propane)
• Fuel Connection - 9/16"-18 LH (Ball Seat)
• Torch Head Diameter - (x2) 2"
• Material - Mild Steel & Brass
• Length - 32"
• Weight - 4 lbs.
• Color - Blue & Black

Designed for professional roofers, the FV-17 Twin Head Torch is like having a blast furnace in your hands. It also works great for spot drying.

With the standing, adjustable pilot flame and squeeze trigger, the FV-17 Torch will give you instant performance, tough enough for every job. The FV-17 has also been used for other applications as well, such as; shrink wrapping, industrial processing and floor & road drying.

NOTE - For best performance, we strongly recommend using this torch with multiple tank installations. Please consult you LP Gas dealer for details.
